Carbonated beverage systems
Carbonated Drink Filling Lines from China
Build the CSD line around beverage formulation, CO2 target, container, fill conditions, pressure control, temperature and finished-pack requirements.
Published by Allot Tech. Project contact: founder Mr Kcal. Final engineering, performance, materials, compliance, manufacturing responsibility and commercial terms must be confirmed for the selected resource and signed project scope.
Updated September 3, 2026
Direct answer
Carbonation performance depends on the complete cold process and pressure boundary.
A carbonated soft drink line connects treated water, syrup preparation, blending, chilling, carbonation, isobaric filling, closure, warming or drying, labeling and packing. Stable output requires the product temperature, carbon dioxide level, pressure transitions, container and closure to be considered together rather than treating the filler as an isolated machine.
Project definition
Start with the complete decision basis.
A carbonated soft drink line connects treated water, syrup preparation, blending, chilling, carbonation, isobaric filling, closure, warming or drying, labeling and packing. Stable output requires the product temperature, carbon dioxide level, pressure transitions, container and closure to be considered together rather than treating the filler as an isolated machine.
Product
Soft drink, soda, sparkling water or other carbonated beverage; Brix, CO2 target and recipe basis.
Container
PET, glass or can; dimensions, pressure performance, closure, label and finished pack.
Process
Syrup preparation, blending, deaeration, chilling, carbonation, CIP and product transfer.
Output
Target BPH or CPH, reference size, format mix, ambient conditions and factory utilities.
System or development path
Control product preparation, carbonation and filling as one pressure system.
Treated water and syrup
Define water quality, sugar or sweetener handling, syrup room, filtration and batch records.
Blending and deaeration
Control product ratio and dissolved oxygen before carbonation according to the approved process.
Chilling and carbonation
Match temperature, pressure, CO2 dosing and buffer conditions to the product requirement.
Isobaric filling and closure
Confirm container type, filling level, foaming control, cap or seam quality and pressure-release sequence.
Warming, drying and inspection
Protect bottle or can stability, remove condensation and prepare the package for labeling or coding.
Packing and pallet flow
Match pack pattern, conveyor accumulation, palletizing and warehouse handover to actual line output.
Quotation comparison
Compare CSD proposals using defined process and package conditions.
| Decision area | Buyer should provide | Proposal should clarify |
|---|---|---|
| Carbonation basis | Target CO2, product temperature and ambient range. | Mixer or carbonator design, control basis, stated accuracy and test method. |
| Container pressure | Approved PET, glass or can specification and closure. | Handling, filling, capping or seaming, inspection and pressure-safety assumptions. |
| Product route | Water, syrup, ingredients and cleaning requirements. | Blending, tanks, piping, CIP boundaries and instrumentation. |
| Line output | Reference size, pack format and operating schedule. | Balanced output through filler, warmer, labeler, packer and palletizer. |
| FAT | Test liquid, CO2, containers, closures and measuring method. | Run conditions, records, acceptable variation and unresolved-action process. |
Solve the next project problem
Close these proposal gaps before price becomes the decision.
Use the brief below to turn a vague supplier conversation into questions that can be answered and documented.
Make this decision comparable.
Send: Target CO2, product temperature and ambient range.
Require: Mixer or carbonator design, control basis, stated accuracy and test method.
Make this decision comparable.
Send: Approved PET, glass or can specification and closure.
Require: Handling, filling, capping or seaming, inspection and pressure-safety assumptions.
Make this decision comparable.
Send: Water, syrup, ingredients and cleaning requirements.
Require: Blending, tanks, piping, CIP boundaries and instrumentation.
Send the beverage, package files, required output, factory conditions, destination and current project stage. The Allot Tech Project Desk can help organize the first comparison.
Decision evidence
Keep project evidence connected to each approval and release decision.
Evidence should be identified before the order or approval stage so both sides know what will support the next decision.
Approved engineering basis
Keep the signed specification, equipment list, package files, layout and interface responsibilities under revision control.
Manufacturing progress record
Identify agreed drawings, component confirmations, photographs, open questions and approval decisions by date.
Test and acceptance record
State configuration, materials, operating conditions, measurements, results, punch-list items and release status.
Delivery and handover package
Connect packing, serial numbers, manuals, backups, spare parts, training and support contacts to the delivered scope.
Temperature is part of the filling design
CO2 retention and foaming behavior change with product temperature and pressure. Quotation assumptions should state the design temperature and the responsibility for cooling water, refrigeration and operating conditions.
- State inlet and filling temperature
- Confirm chiller and utility boundary
- Record ambient design conditions
PET, glass and cans are different projects
Each container uses different handling, closure and inspection logic. A proposal should identify format-specific equipment, change parts and safety measures instead of describing all packages as interchangeable.
- Approve every package drawing
- Check closure or seam inspection
- Compare format-change requirements
Measure acceptance, do not rely on appearance
FAT should use agreed measuring methods for output, fill level or volume, closure quality, product temperature and carbonation where the test setup permits. Final beverage quality remains subject to the responsible process and quality parties.
- Define instruments and sampling
- Record stabilized running conditions
- List post-FAT open actions
Decision gates
Move forward when the next commitment has enough written evidence.
Project stages overlap, but each commercial commitment should have a visible basis, named approvers and a list of unresolved items.
Engineering basis approved
The product, package, output, equipment boundary, layout, utilities, responsibilities and open assumptions are controlled.
Manufacturing and test basis approved
Drawings, component schedule, test materials, acceptance conditions, documents and planned evidence are agreed.
Delivery and handover released
Punch-list closure, packing, shipment files, site readiness, installation scope, training and support ownership are visible.
Before requesting a proposal
Build one brief that every resource can answer on the same basis.
This page is designed to help an international buyer prepare a clearer discussion, not to replace the responsible resource’s engineering or the buyer’s professional review.
Product
Beverage, process, hygiene, shelf-life and operating conditions.
Package
Container, closure, label, code, finished pack and approved files.
Output
Required rate for a named format, shifts, annual plan and changeovers.
Factory
Measured space, utilities, access, drainage and local site constraints.
Project scope
Equipment boundary, documents, FAT, delivery, startup and destination.
Allot Tech organized recurring buyer questions, project-scoping patterns, available catalog inputs and specialist-resource context into a decision sequence. No customer case, certification, output guarantee or factory ownership is implied unless separately verified for the named project.
Manufacturing context

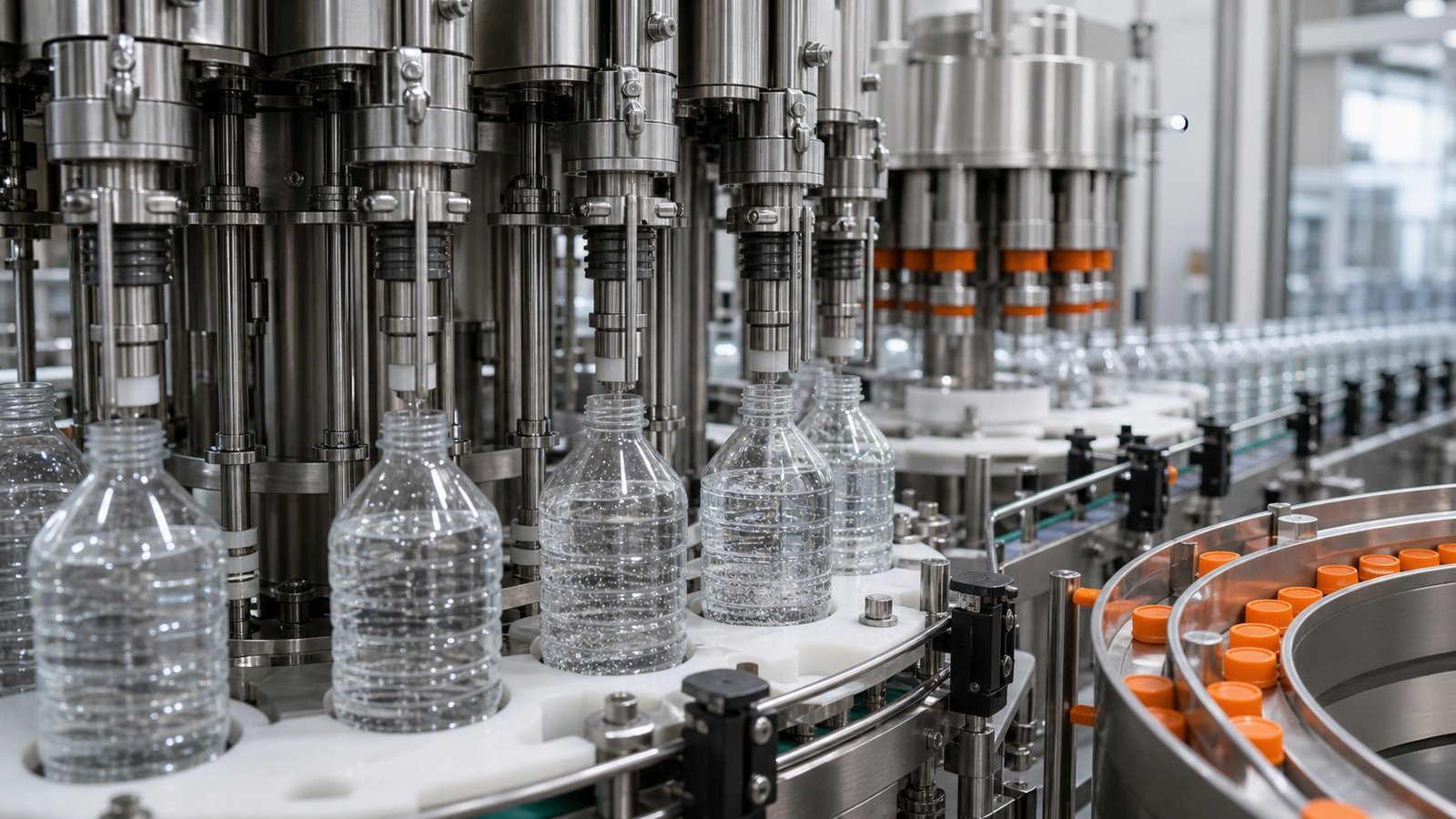

Use equipment views to ask more specific project questions.

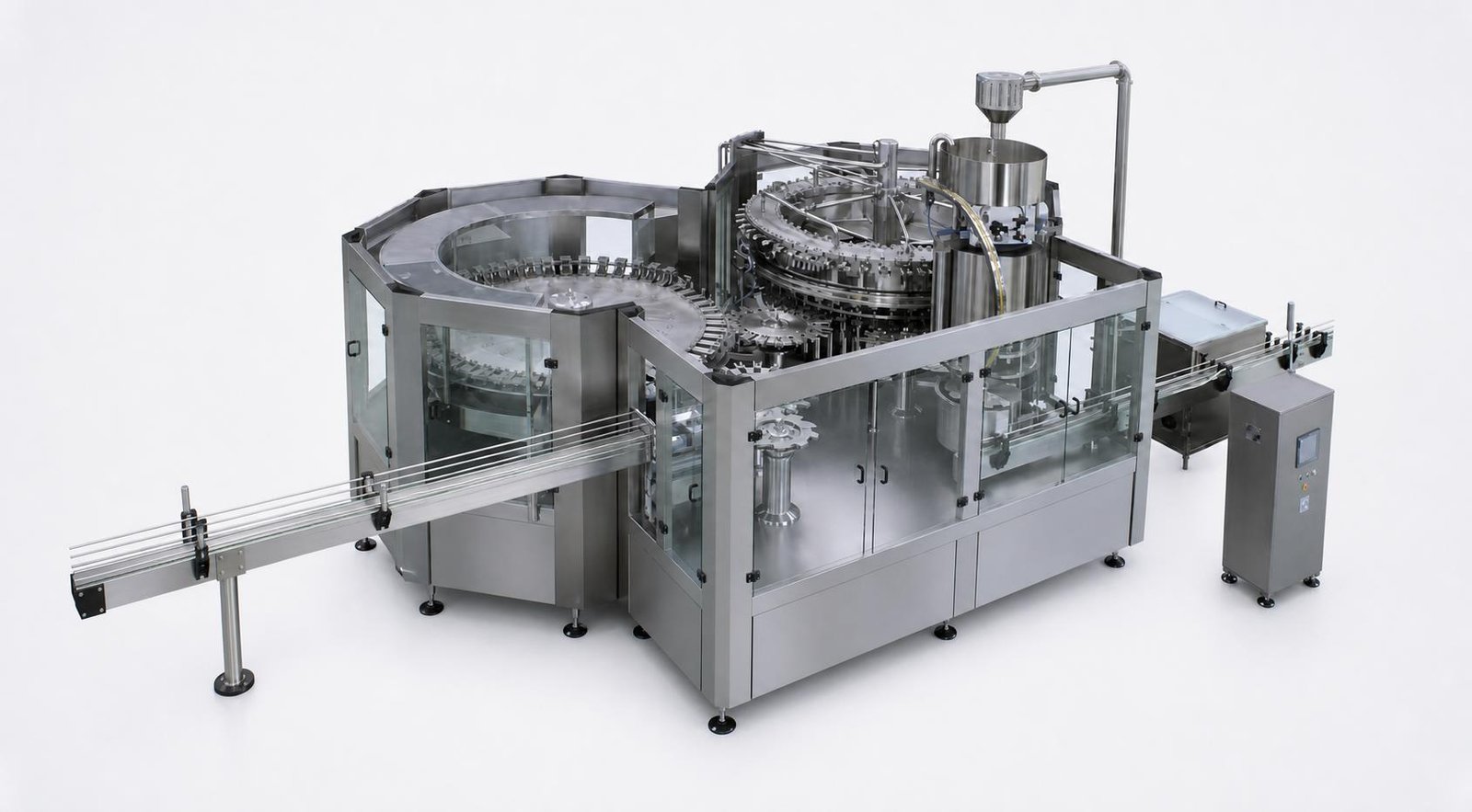

The process illustration supports scope discussion. The XGF equipment image is reproduced from page 9 of the Allot Tech 2026 catalog; use the catalog and project documents to review the applicable configuration.
Buyer questions
Frequently asked questions
What equipment is used in a carbonated drink filling line?
A complete line may include treated-water and syrup systems, blending, deaeration, chilling, carbonation, isobaric filling, capping or seaming, warming, drying, labeling, packing and palletizing.
Why is product temperature important?
Lower and controlled temperature supports CO2 retention and affects foaming, filling stability, utility demand and the carbonation process.
Can one project include PET bottles and cans?
It can be discussed, but PET and cans normally require different filling, closure and handling equipment. Shared upstream process scope and separate packaging lines must be defined clearly.
What should a CSD RFQ include?
Include recipe basis, Brix and CO2 target, package drawings, target output, process scope, utility conditions, factory layout, destination and acceptance requirements.
